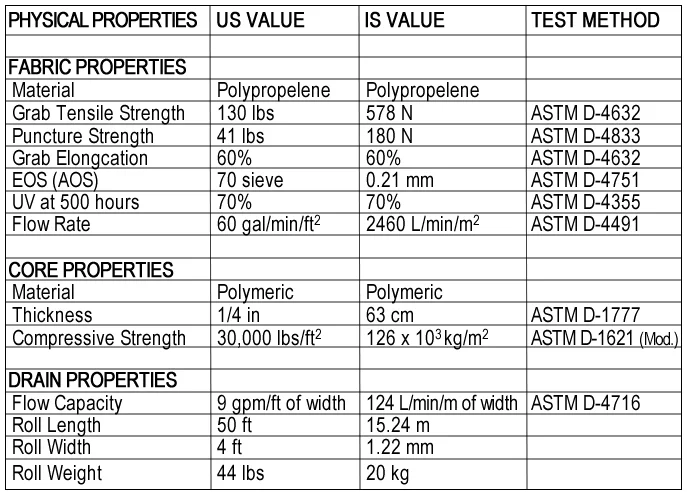

PercoDrain 30-T Data Sheet

download data sheet


PercoDrain 30-T is a two-part prefabricated soil sheet drain consisting of a formed polystyrene core covered with a nonwoven, spunbonded, continuous filament, polypropylene geotextile on the dimple side of the core.

The fabric allows water to pass into the drain core while restricting the movement of soil particles which might clog the core. The core allows the water to flow to designated drainage exits.

PercoDrain 30-T is designed primarily for horizontal applications at depths where higher compressive strength is needed.

 All information, images and specifications are based on the latest product information available.  We reserve the right to make changes without notice, due to constant improvements and engineering progress. All physical properties are typical values.  Standard variation in mechanical properties of 10% and in hydraulic properties of 20% are normal.
